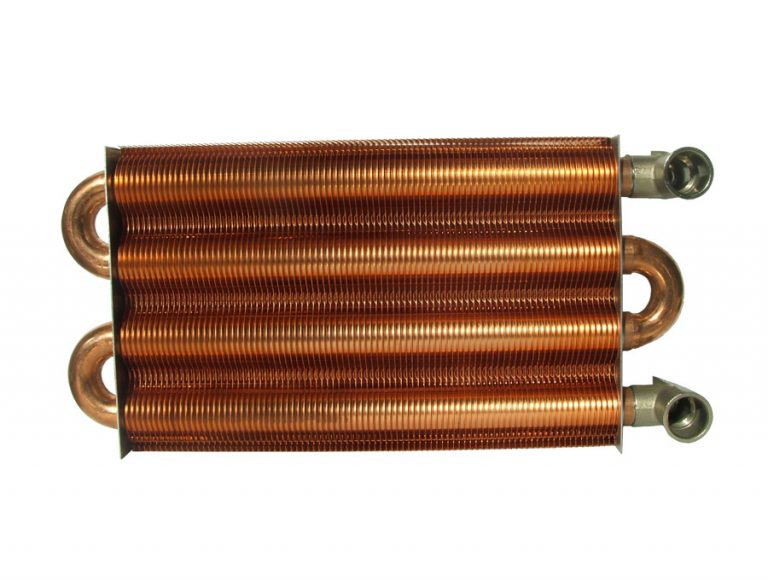

Monothermal 4 round tubes

D23

Monothermal
4 round tubes

D23

Heat exchangers for traditional boilers

Request Info

    overall dimensions (A) overall dimensions (B) number flapsheat output (max)
    180 mm 170 - 230 mm 51 - 76 20 kW
    180 mm 260 mm 80-86 24 kW
    180 mm 290-320-330 mm 88-109 28 kW
    180 mm 340-380 mm 96-125 32 kW

    * The heat output expressed in the table is INDICATIVE.

    functional features
    maximum operating pressure bar3
    maximum operating temperature °C 93
    minimum distance from the burnermm 140
    surface treatmentsilicone coating with added aluminum
    Various types of connections are available. Contact Valmex S.p.A. in case of necessary fittings and/or customizations.
