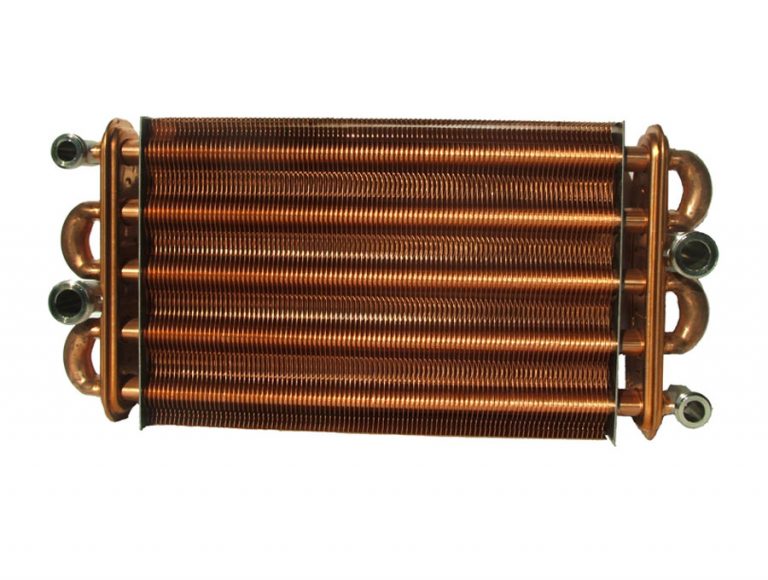

Bithermal 5 oval tubes

30×15

Bithermal
5 oval tubes

30×15

Heat exchangers for traditional boilers

Request info

    overall dimensions (A)overall dimensions (B) number flapsheat output (max)
    180 mm 190-230 mm 64-82 24 kW
    180 mm 270 mm 78-97 28 kW
    180 mm 290-300 mm 82-107 32 kW

    * The heat output expressed in the table is INDICATIVE.

    functional features
    maximum operating pressure bar3
    maximum operating temperature °C 93
    maximum operating pressure (sanitary) bar 10
    maximum operating temperature (sanitary) °C 90
    minimum distance from the burnermm140
    surface treatmentsilicone coating with added aluminum
    Various types of connections are available. Contact Valmex S.p.A. in case of necessary fittings and/or customizations.
