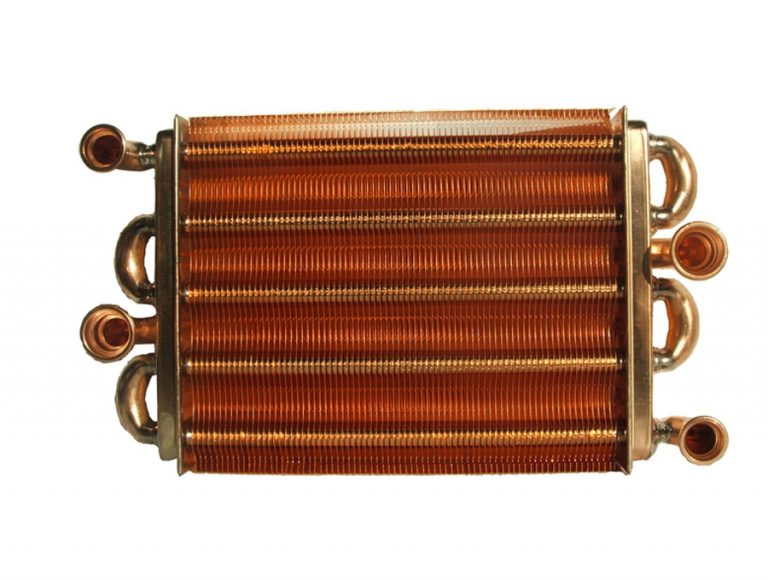

Bithermal compact 5 oval tubes

D30x15

Bithermal compact
5 oval tubes

D30x15

Heat exchangers for traditional boilers

Request info

    overall dimensions (A) overall dimensions (B) number flapsheat output (max)
    180 mm 225 mm 74-83 24 kW

    * The heat output expressed in the table is INDICATIVE.

    functional features
    maximum operating pressure bar 3
    maximum operating temperature °C 93
    maximum operating pressure (sanitary) bar 10
    maximum operating temperature (sanitary) °C 90
    minimum distance from the burnermm 140
    surface treatmentsilicone coating with added aluminum
    Various types of connections are available. Contact Valmex S.p.A. in case of necessary fittings and/or customizations.
