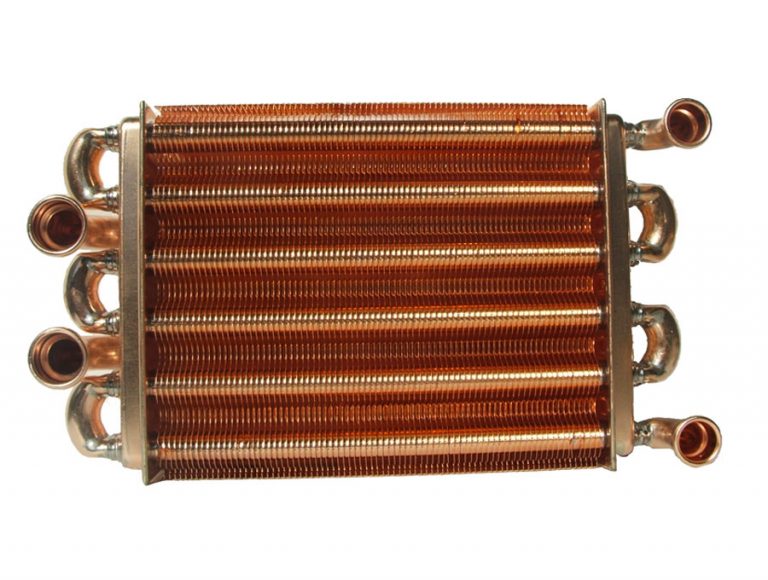

Bithermal compact 6 oval tubes

26.6×13.6

Bithermal compact
6 oval tubes

26.6×13.6

Heat exchangers for traditional boilers

Request info

    overall dimensions (A) overall dimensions (B) number flapsheat output (max)
    180 mm 225 mm 72-81 24 kW
    180 mm 250 mm 74-90 26 kW
    180 mm 260 mm 84-94 28 kW
    180 mm 290 mm 94-105 32 kW
    180 mm 340 mm 115-123 35 kW

    * The heat output expressed in the table is INDICATIVE.

    functional features
    maximum operating pressure bar3
    maximum operating temperature °C 93
    maximum operating pressure (sanitary) bar 10
    maximum operating temperature (sanitary) °C 90
    minimum distance from the burnermm140
    surface treatment silicone coating with added aluminum
    Various types of connections are available. Contact Valmex S.p.A. in case of necessary fittings and/or customizations.
